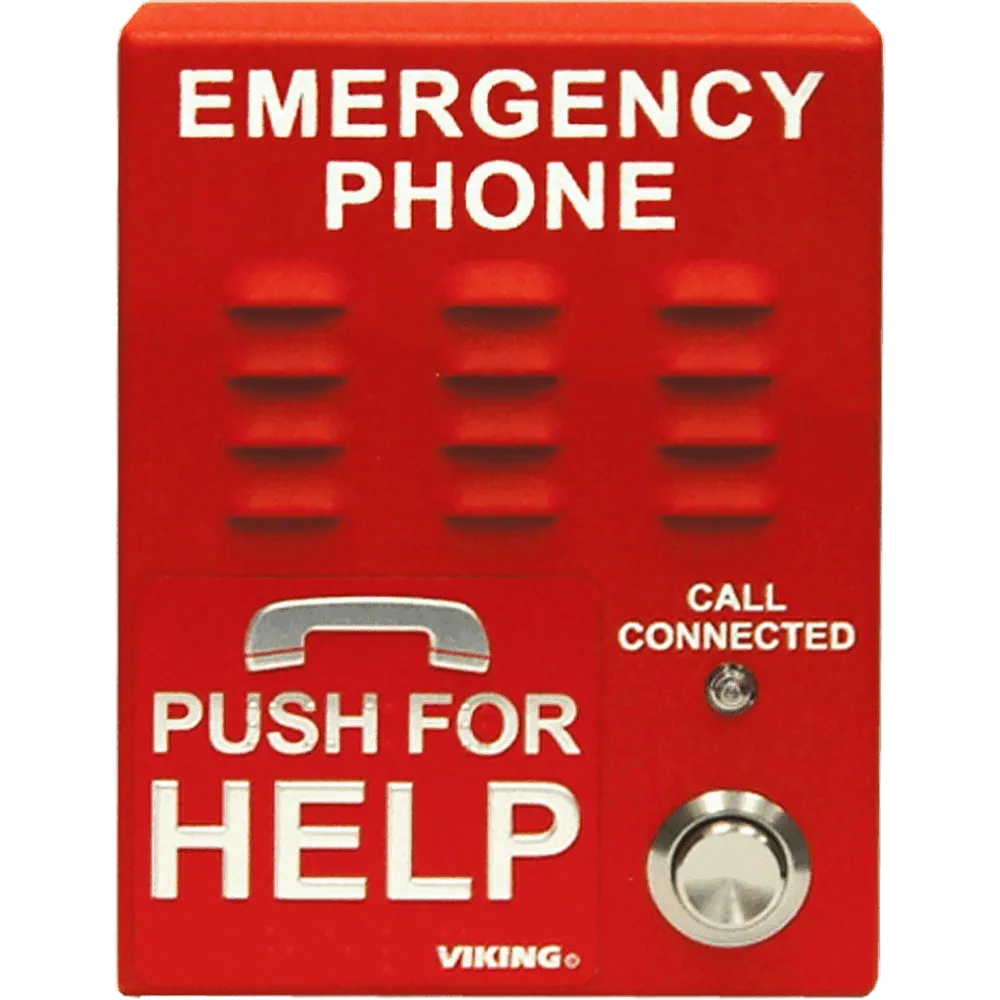

Viking E-1600A-EWP Emergency Elevator Phone Features:

• Can automatically light "call connected" LED for hearing impaired
• Transmits a unique location I.D. code or voice announcement
• Grade 2 Braille label for visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Non-volatile E² memory
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Touch tone or pulse dialing
• Dials up to 5 emergency numbers
• Cycles through backup emergency and non-emergency numbers on busy or no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central station monitoring capability (dials 2 numbers)
• Separate central station voice speed dial number
• Enhanced weather protection (EWP) ideal for outdoor or harsh environments
• For Standard version see
• EWP includes rubber gaskets and boots, silicon sealed connections, and gel-filled butt connectors
• Manufacturer Warranty 2 Year Limited Warranty

Viking E-1600A-EWP Applications:

• Elevators
• Parking ramps
• Pools
• ATM machines
• Area of refuge locations
• Lobbies
• Entryways
• Campus emergency stations
• Roadside emergency stations
• Stadiums
• Convention centers

• Viking E-1600A-EWP Specifications

  • Power: Telephone line powered (24VDC / 20mA minimum)
  • Dimensions: 5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)
  • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
  • Humidity: 5% to 95% non-condensing
  • Shipping Weight: 2.5 lbs (1.13 kg)
  • Material: 16 gauge steel with textured red powder paint
  • Mounting: Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes; recess mount in elevator phone boxes
  • Connections: (2) Gel-filled butt connectors

  Viking E-1600A-EWP Certifications

  • FCC Part 68
  • FCC Part 15
  • ADA
