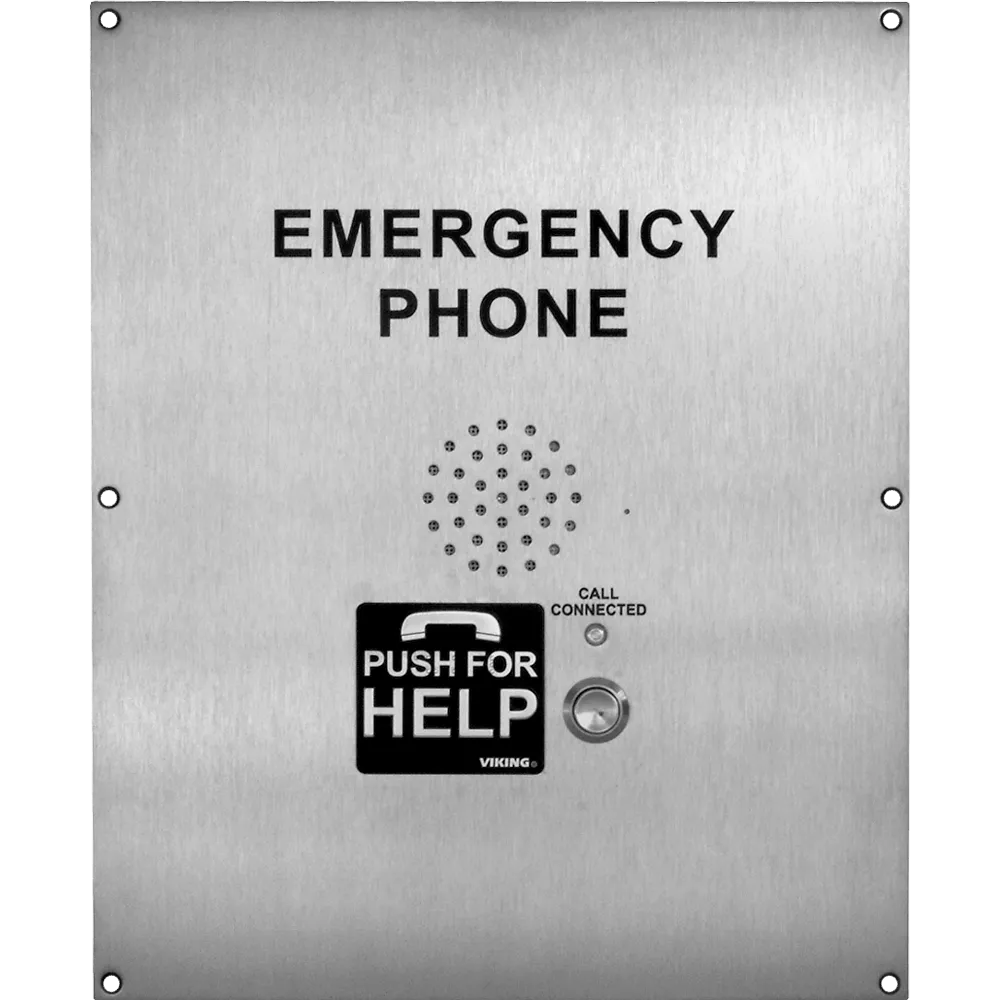

Viking E-1600-02-IPEWP Features:
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
- PoE powered (class 1,
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- Network downloadable firmware
- Meets ADA requirements for Emergency Phones: Automatically lights the “Call Connected" LED ,Transmits a unique location I.D. code or voice announcement, Grade 2 Braille label for the visually impaired
- Non-volatile digital voice announcer with 28 seconds of voice memory
- Handsfree operation
- Marine grade 316 stainless steel prevents corrosion on the stainless steel models
- Dials up to 5 emergency numbers
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress
- Protection Rating
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-15°F to 130°F)
Specifications:
- Power: PoE class 1 (
- Dimensions: See Installation and Specifications
- Operating Temperature: -26° C to 54° C (-15°F to 130°F)
- Humidity - Standard Products: 5% to 95% non-condensing
- Humidity - EWP Products: Up to 100%
- Audio Codecs: G711u, G711a, G722
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
- EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards
E-1600-02-IP Features:
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
- PoE powered (class 1,
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- Network downloadable firmware
- Meets ADA requirements for Emergency Phones: Automatically lights the “Call Connected" LED ,Transmits a unique location I.D. code or voice announcement, Grade 2 Braille label for the visually impaired
- Non-volatile digital voice announcer with 28 seconds of voice memory
- Handsfree operation
- Marine grade 316 stainless steel prevents corrosion on the stainless steel models
- Dials up to 5 emergency numbers
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress
- Protection Rating
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-15°F to 130°F)
Specifications:
- Power: PoE class 1 (
- Dimensions: See Installation and Specifications
- Operating Temperature: -26° C to 54° C (-15°F to 130°F)
- Humidity - Standard Products: 5% to 95% non-condensing
- Humidity - EWP Products: Up to 100%
- Audio Codecs: G711u, G711a, G722
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
VoIP SIP System Compatibility List:
- On Premise
- 3COM VCX
- 3CX
- Allworx
- Aastra
- Asterisk
- Atcom
- Avaya Aura Platform
- Avaya IP Office Platform
- BlueBox
- Brekeke
- Cisco Unified Communications Manager (CUCM)*
- Cisco Unified Communications Manager Express (CUCME)
- Elastix
- epygi QX200
- Freeswitch
- Grandstream*
- Interactive Intelligence
- iPECS (Ericsson-LG)
- Iwatsu ECS
- Kamailio
- Mitel 3300
- NEC
- OfficeSIP
- OpenSIPS
- Panasonic** (with SIP Extension Card)
- PolyCom
- Samsung Communications Manager (SCM)
- ShoreTel
- Siemens Communications Server (SCS)
- SIP Express Router (SER)
- Snom PBX
- Sonus
- Switchvox
- Teksip
- Toshiba
- Vertical Wave*
- Yealink T Series S IP Phones
Cloud Based Service Provider:
- Callcentric
- iptel.org
- MetaSwitch
- Ring Central
- sip.antisip.com
- Switchvox
- unify
- Vertical Wave
- Voice Carrier
- VoIP.MS
- Wildix
- ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
